Cold shrink cable accessories are capable of shrinking without application of heat. They are manufactured in a pre-expanded condition and assembled onto a removable core. The core is removed after the tube is positioned over the cable for installation, allowing the tube to shrink and providing a moisture-tight seal. Woer cold shrink cable accessories are characterized by simple solutions with safe connection. They are manufactured with liquid silicone rubber, which has high-quality electrical insulation, excellent tracking resistance as well as high elasticity.

Part No. Picture Description Aplication Shrink Ratio Adhesive Lining Standards

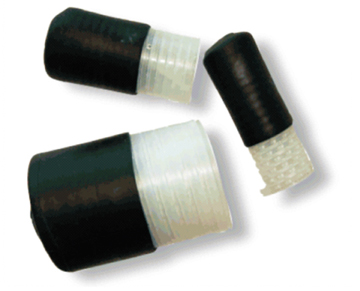

WCSEC(Cold Shrink End Caps
  • Made of EPDM rubber Simple and fast installation meeting a variety of configuration requirements Providing sealing protection over multi-core cable ends Used to seal cable ends during installation or storage, protecting cable ends against moisture, contamination and corrosion.
    		•

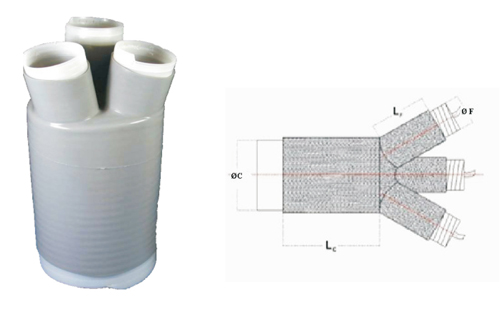

    WCSF (Cold Shrink Breakout)
  • Made of EPDM rubber Offering good mechanical, insulation and sealing protection Accommodating a wide range of cable sizes For indoor or outdoor applications Simple and fast installation
    		•
    WEPDMC (EPDM Cold Shrink Tube)
  • Made of liquid silicone rubber Simple and fast installation meeting a variety of configuration requirements Providing sealing protection over multi-core cable crutch, including 3-, 4-, 5-, 6-core breakouts
    		•

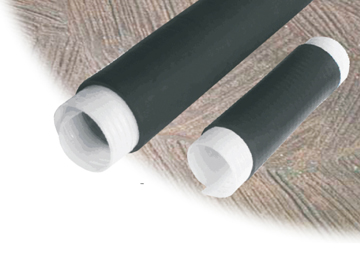

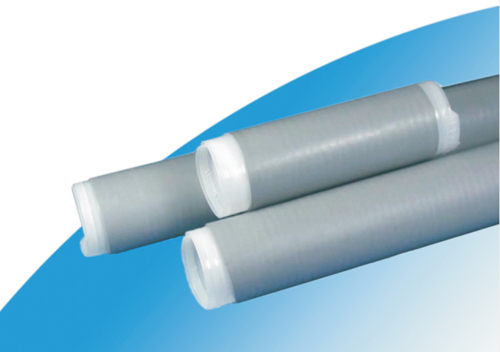

    WCST (Cold Shrink Tube)
  • Made of liquid silicone rubber Offering good mechanical, insulation and sealing protection Accommodating a wide range of cable sizes For indoor or outdoor applications Simple and fast installation Color: Grey, black
    		•

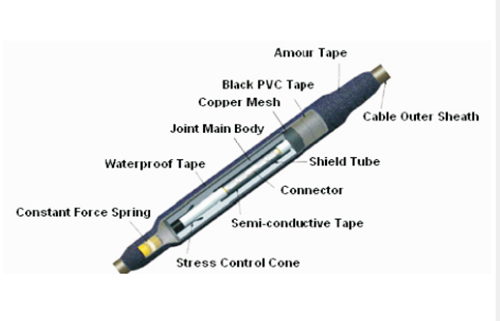

    WLJ ( Cold Shrink Joint Kits 1-36 kV)
  • The cold shrink cable joint is suitable for 1 or 3-core XLPE cable with Al or Cu conductor (1-36kV). The joint body is made of advanced liquid silicone rubber with integrated stress control. This design vouches for the best possible interface, thereby greatly minimizing partial discharge and improving its performance during operation. The joint kit includes all the necessary components to make the installation.
    		•

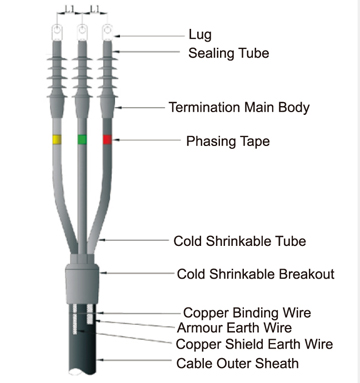

    WLN, WLW (Cold Shrink Termination Kits 1-36 kV)
  • The cold shrink termination is available for indoor & outdoor applications for single core and 3-core cables up to 36kV. The termination is one-piece design manufactured from high quality liquid silicone rubber. The cold shrink termination is factory expanded on a removable inner-supporting core. Once the termination is positioned onto the cable core, the supporting core is unwound and removed, and the live-memory action of the material shrinks the termination into place. The termination kit includes all the necessary components to make the installation.
    		•
