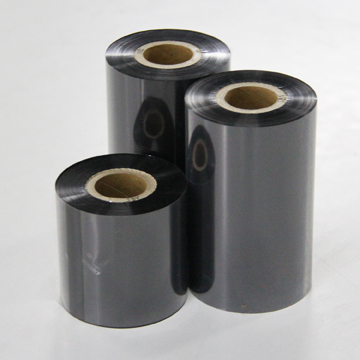

| WO-80500BK （N85）Ribbon |
 |
WO-80500BK （N85）— is an ultra- high durability black resin thermal transfer ribbon, tested and approved for use on WOER AMS-M, HMS-M,
DIN-M and HNF-M wire marker sleeves as well as DIN/AMS/HMS/HNF cable marker tags. For reliable print performance and durability, please use WOER recommended compatible printers. |
|
|
|

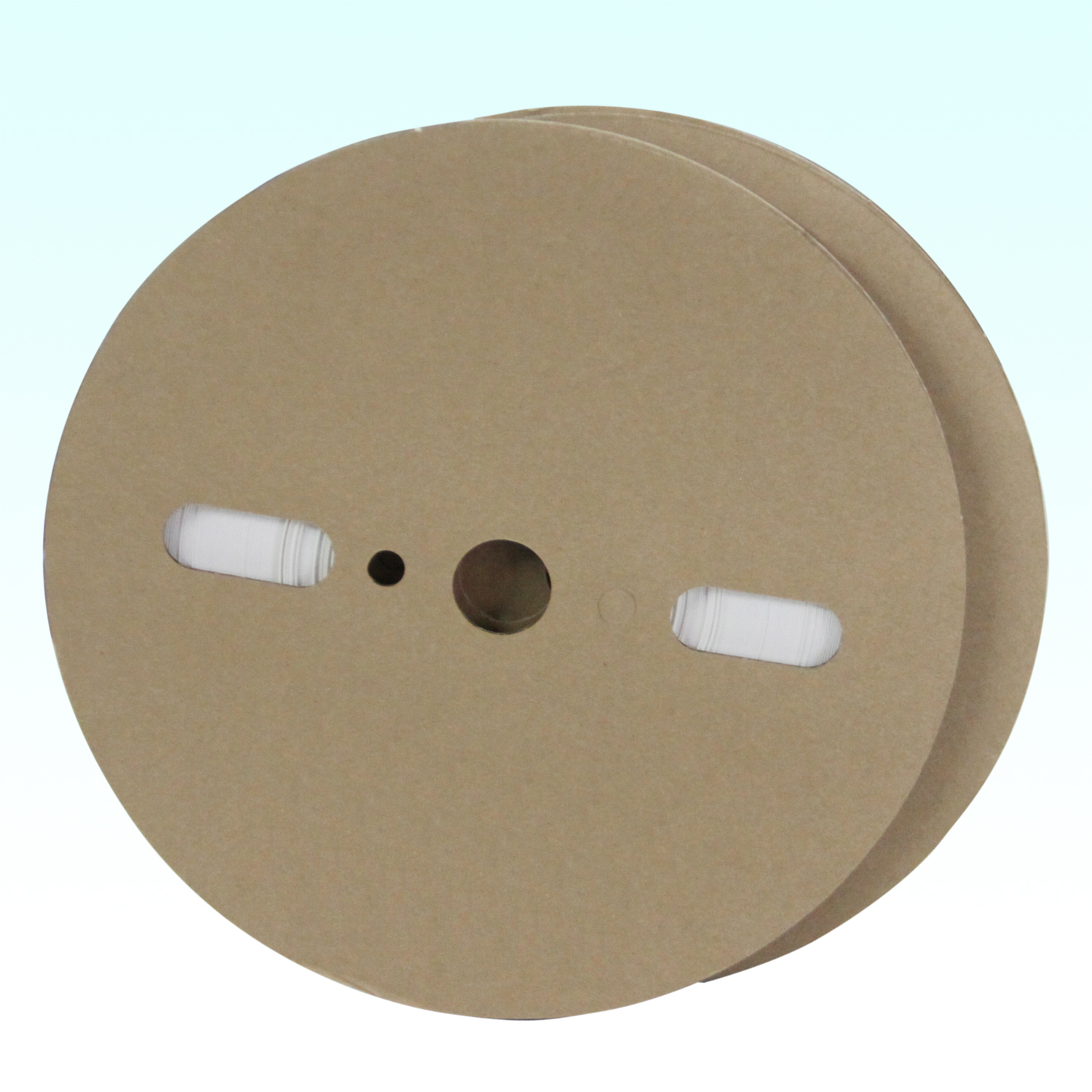

| WOlabel Printable Heat-shrinkable Tubing |
 |
The tubing is fabricated from irradiated, thermally stabilized and flame retarded modified polymer compound without any glues. It has two shrink ratio, 2:1 and 3:1. TH-H is flexible,
flame retardant printable heat-shrink tubing, with outstanding physical performance. It is designed in flattering configuration, has a good printing effect, reliable for wire and cable identification system. |
|
-40°C--- +125°C |
EU RoHS Directive 2002/95/EC. |
| RSFR-M Heat Shrink Marker Sleeve |
 |
RSFR-M marker sleeve is a flattened, heat-shrinkable tubing intended for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary.
When RSFR is printed with Woer recommended printers and ink ribbons, the marks remain legible, durable, even when exposed to abrasion, aggressive cleaning solvents, and industrial fluids |
|
|
SAE-AS 81531, MIL-STD-202F/Method 215J, UL224，RoHS etc |
| HNF-M Heat Shrink Marker Sleeve |
 |
HNF-M marker sleeve is a flattened, heat-shrinkable tubing designed for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary.
The zero halogen material coupled with low smoke and low toxic fume emissions make this product perfectly used in enclosed spaces such as mass transit, marine and industrial installations. |
|
|
meets NF F16-101, SAE-AS 81531, MIL-STD-202F/Method 215J, RoHS etc |
| HMS-M Heat Shrink Marker Sleeve |
 |
HMS-M markers are used to identify wires and cables where exposure to organic fluids, especially oils, for long periods at elevated temperatures. |
|
|
HMS-M markers are used to identify wires and cables where exposure to organic fluids, especially oils, for long periods at elevated temperatures |

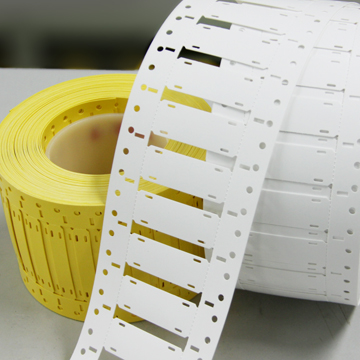

| IDENTIFICATION TAGS |
 |
According to the structure of label card, it is made of the environment-friendly polyolefin materials by means of bombardment and cross-link of high energy electron bunch. DIN tag is halogen free, operating temperature -40°C----125°C.
AMS tag is military grade, operating temperature -55°C----135°C. HMS tag is military grade, fluid resistant, operating temperature -55°C----135°C. HNF tag is halogen free, operating temperature -40°C----125°C. They are mainly applied in the
domains such as high-trials, subways, MU train，nuclear power station, airplane and space shuttles in which the wide-diameter cable and bundle labels with high reliability are required to applied in severe environment |
|
|
ASTM 2671/ DIN 5510-2 |
| DIN-M Heat Shrink Marker Sleeve |
 |
DIN-M marker sleeve is a flattened, heat-shrinkable tubing intended for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary. The zero halogen material coupled
with low smoke and low toxic fume emissions make this product best used in enclosed spaces such as mass transit, marine and industrial installations. |
|
|
meets DIN 5510-2, NF F16-101, SAE-AS 81531, MIL-STD-202F/Method 215J, RoHS etc |
| AMS-M Heat Shrink Marker Sleeve |
 |
AMS-M marker sleeve is designed to meet the wire and cable permanent marking needs and can be used in wide applications. It is made of durable and flame retardant heat shrinkable polyolefin, which is radiation cross-linked by high energy electronic beam. |
|
|
AMS-M meets AMS-DTL-23053/5 Class 1&3, SAE-AS 81531, MIL-STD-202F/Method 215J, UL224, RoHS. |
